Chrome Series

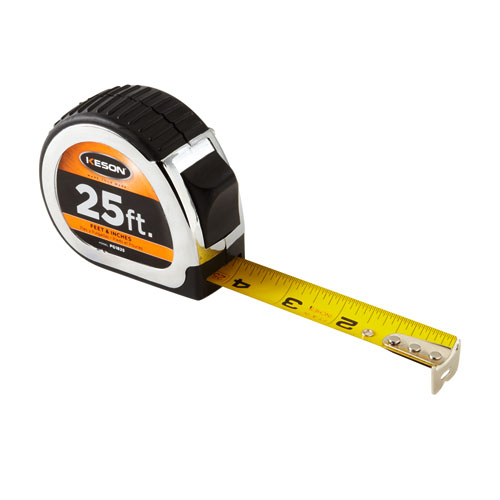

Our most popular model, this chrome-coated, rubber-grip compact housing comes in the most lengths and units. The textured rubber grips provide a sure hold even in a gloved hand. The easy slide out and swift return action on these tapes make them consistent performers on the job site.

Features

  • Nylon Coated Steel Blade
  • Easy-to-Read Graduations
  • True Zero Hook
  • Positive Locking Button
  • Bumper Cushion
  • Heavy-Duty End Hook
  • Chrome-Plated Case
  • Belt Clip
  • 3 Rivet Hook
Feature Defined
Lock Slide
Case & Components Chrome-Coated ABS
Blade Nylon-Coated Steel
Impact Durability



Download Sell Sheet

    • Model UPC (052837) Length Units Width (in) Stand Out (ft) Blade
    blade-A1 PG1810 028191 10 ft ft, in, 1/8, 1/16 (1/32 first 12″) 5/8 NA A1
    blade-A5 PG18M10 027842 3m/10 ft ft, in, 1/8, 1/16 & cm, mm 5/8 up to 8 A5
    blade-A1 PG1812 021987 12 ft ft, in, 1/8, 1/16 (1/32 first 12″) 5/8 up to 5 A1
    blade-A2 PG1012 027767 12 ft ft, 1/10, 1/100 5/8 up to 5 A2
    blade-A4 PG181012 027699 12 ft ft, 1/10, 1/100 & ft, in, 1/8, 1/16 5/8 up to 5 A4
    blade-B1 PG1816 004102 16 ft ft, in, 1/8, 1/16 (1/32 first 12″) 1 up to 8 B1
    blade-B2 PG1016 004300 16 ft ft, 1/10, 1/100 1 up to 8 B2
    blade-B5 PG18M16 027859 5m/16 ft ft, in, 1/8, 1/16 & cm, mm 1 up to 8 B5
    blade-B5 PG18M25 004706 7.5m/25 ft ft, in, 1/8, 1/16 & cm, mm 1 up to 8 B5
    blade-B1 PG1825 004010 25 ft ft, in, 1/8, 1/16 (1/32 first 12″) 1 up to 8 B1
    blade-B2 PG1025 004201 25 ft ft, 1/10, 1/100 1 up to 8 B2
    blade-B4 PG181025 010349 25 ft ft, 1/10, 1/100 & ft, in, 1/8, 1/16 1 up to 8 B4
    blade-B6 PG10M25 010356 7.5m/25 ft ft, 1/10, 1/100 & cm, mm 1 up to 8 B6
    blade-B1 PG1830 004355 30 ft ft, in, 1/8, 1/16 (1/32 first 12″) 1 up to 8 B1
    blade-B4 PG181033 027682 33 ft ft, 1/10, 1/100 & ft, in, 1/8, 1/16 1 up to 8 B4
    blade-B1 PG1835 021994 35 ft ft, in, 1/8, 1/16 (1/32 first 12″) 1 up to 8 B1
    blade-B3 PG3M 028238 3 m m, cm, mm 16mm up to 8′ B3
    blade-B3 PG5M 028245 5 m m, cm, mm 25mm up to 8′ B3
    blade-B3 PG8M 028252 8 m m, cm, mm 25mm up to 8′ B3
