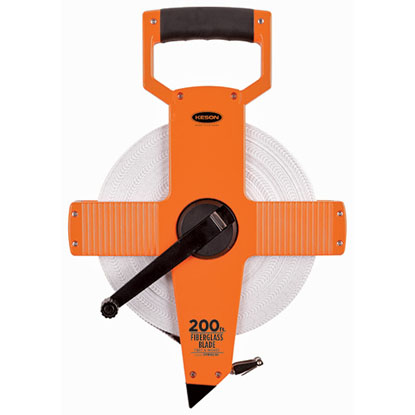

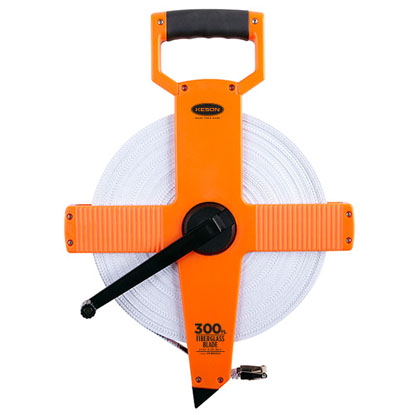

OTR Series

OPEN-TYPE REEL, ULTRA-GLASS BLADE, STANDARD REWIND

A Keson best seller! Since 1968 this style of Keson fiberglass tape has been providing customers with accurate measurements. They are used in the harshest conditions in which people measure, and they stand to the only test that matters: field performance. We cover each blade with two coats of PVC protected by double shield, one to bind the fiberglass strands and a second over the printed units, so the numbers don’t wear away.

We have made modifications to the housing over the years:

  • Better plastic and molding shapes for increased durability.
  • Double screws to hold the housing together in the event of a drop.
  • Better blade axle to reduce breakage due to the weight of the tape if dropped.

We’ve been honoring warranty dates long past a single year and we are now proud to offer a limited lifetime warranty on these products.

FEATURES

  • Tough, molded handle is easy to grasp.
  • The crank handle is reinforced with metal to provide years of rugged use.
  • Double-throat rollers guide the blade return and prevent the tape from twisting.
  • The shovel handle is ideal for rapid reeling.
  • Two coats of PVC protected by double shield.
Limited lifetime warranty.

Download Sell Sheet

Model UPC (052837) Length Units Zero Pt. Attachment Blade
blade-F1 OTR1850 000203 50 ft ft, in, 1/8 Hook End Hook F1
blade-F2 OTR1050 001408 50 ft ft, 1/10, 1/100 Hook End Hook F2
blade-F1

blade-F14

OTR181050 000807 50 ft ft, in, 1/8 & ft, 1/10, 1/100 Hook End Double Hook F1 & F14
blade-F1

blade-F13

OTR18M50 000500 50 ft/15m ft, in, 1/8 & m, cm, 2mm Hook End Double Hook F1 & F13
blade-F2

blade-F13

OTR10M50 001101 50 ft/15m ft, 1/10, 1/100 & m, cm, 2mm Hook End Double Hook F2 & F13
blade-F1 OTR18100 000210 100 ft ft, in, 1/8 Hook End Hook F1
blade-F2 OTR10100 001415 100 ft ft, 1/10, 1/100 Hook End Hook F2
blade-F1

blade-F14

OTR1810100 000814 100 ft ft, in, 1/8 & ft, 1/10, 1/100 Hook End Double Hook F1 & F14
blade-F1

blade-F13

OTR18M100 000517 100 ft/30m ft, in, 1/8 & m, cm, 2mm Hook End Double Hook F1 & F13
blade-F2

blade-F13

OTR10M100 001118 100 ft/30m ft, 1/10, 1/100 & m, cm, 2mm Hook End Double Hook F2 & F13
blade-F1 OTR18165 000227 165 ft ft, in, 1/8 Hook End Hook F1
blade-F2 OTR10165 001422 165 ft ft, 1/10, 1/100 Hook End Hook F2
blade-F1

blade-F13

OTR18M165 000524 165 ft/50m ft, in, 1/8 & m, cm, 2mm Hook End Double Hook F1 & F13
blade-F2

blade-F13

OTR10M165 001125 165 ft/50m ft, 1/10, 1/100 & m, cm, 2mm Hook End Double Hook F2 & F13
blade-F1 OTR18200 000234 200 ft ft, in, 1/8 Hook End Hook F1
blade-F2 OTR10200 001439 200 ft ft, 1/10, 1/100 Hook End Hook F2
blade-F1

blade-F14

OTR1810200 000838 200 ft ft, in, 1/8 & ft, 1/10, 1/100 Hook End Double Hook F1 & F14
blade-F1

blade-F13

OTR18M200 000531 200 ft/60m ft, in, 1/8 & m, cm, 2mm Hook End Double Hook F1 & F13
blade-F2

blade-F13

OTR10M200 001132 200 ft/60m ft, 1/10, 1/100 & m, cm, 2mm Hook End Double Hook F2 & F13
blade-F1 OTR18300 000241 300 ft ft, in, 1/8 Hook End Hook F1
blade-F2 OTR10300 001446 300 ft ft, 1/10, 1/100 Hook End Hook F2
blade-F1

blade-F14

OTR1810300 000845 300 ft ft, in, 1/8 & ft, 1/10, 1/100 Hook End Double Hook F1 & F14
blade-F1

blade-F13

OTR18M300 000548 300 ft/100m ft, in, 1/8 & m, cm, 2mm Hook End Double Hook F1 & F13
blade-F2

blade-F13

OTR10M300 001149 300 ft/100m ft, 1/10, 1/100 & m, cm, 2mm Hook End Double Hook F2 & F13
blade-F3 OTR15M 001040 15m m, cm, 2mm Hook End Hook F3
blade-F12

blade-F13

OTR15MM 010448 15m m, cm, 5mm & m, cm, 2mm Hook End Hook F12 & F13
blade-F3 OTR30M 010417 30m m, cm, 2mm Hook End Hook F3
blade-F12

blade-F13

OTR30MM 010455 30m m, cm, 5mm & m, cm, 2mm Hook End Hook F12 & F13
blade-F3 OTR50M 010424 50m m, cm, 2mm Hook End Hook F3
blade-F12

blade-F13

OTR50MM 010462 50m m, cm, 5mm & m, cm, 2mm Hook End Hook F12 & F13
blade-F3 OTR100M 010431 100m m, cm, 2mm Hook End Hook F3
blade-F12

blade-F13

OTR100MM 020027 100m m, cm, 5mm & m, cm, 2mm Hook End Hook F12 & F13
